Helical Anchors
At Anchor Systems (International) Ltd, we’re proud to be the original inventors of the Helical Anchor, holding the UK registered design for this innovative ground anchoring solution.
Our Helical Anchors provide a lightweight, practical alternative to lower-capacity Vulcan Earth Anchors — particularly on sites where access is limited, terrain is challenging, or the use of machinery is impractical. Installed by hand or with compact tools, they’re a fast, efficient, and low-impact anchoring method that delivers reliable performance without excavation or concrete.
Helical Anchors are ideal for temporary and permanent works, offering an immediate load-bearing solution that’s perfect for applications such as rope access safety points, small foundations, and lightweight structures.
Key Features & Benefits
Lightweight & Portable: Easily handled and installed without heavy equipment.
Hand or Machine Installable: Ideal for restricted-access or remote locations.
Durable & Reusable: High-strength steel design that can be removed and reused multiple times.
Instant Load Capacity: Ready to perform immediately after installation — no curing time required.
Minimal Ground Disturbance: No excavation or spoil removal needed, reducing site impact.
Customisable Options: Bespoke sizes and designs available to meet specific project requirements.
Low Environmental Impact: A sustainable alternative to concrete or driven piling systems.
Performance & Range
Our Helical Anchors are available in a range of five sizes, with lengths from 400mm to 2000mm and load capacities typically between 100kg and 2000kg. They can be installed vertically or at an angle to provide tension, compression, or lateral restraint depending on the application.
Typical uses include:
Rope access systems for safe descent and ascent on steep slopes

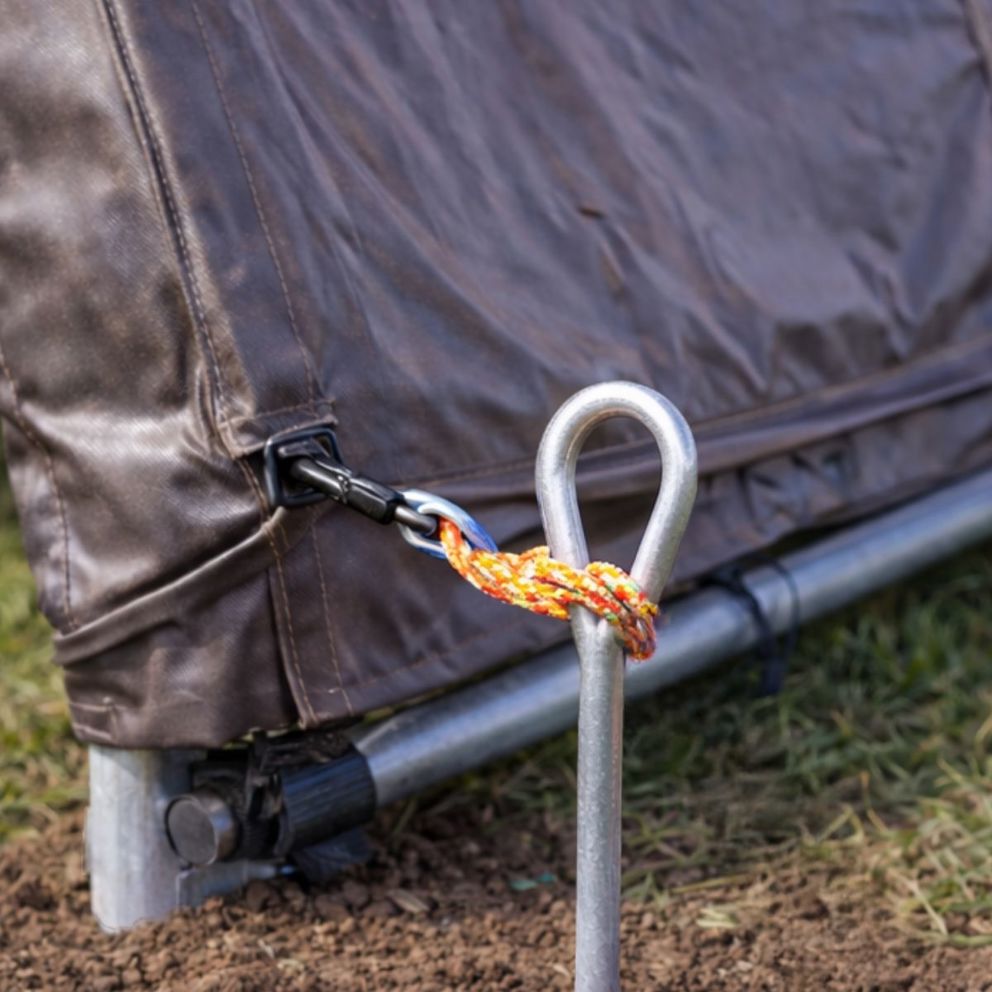

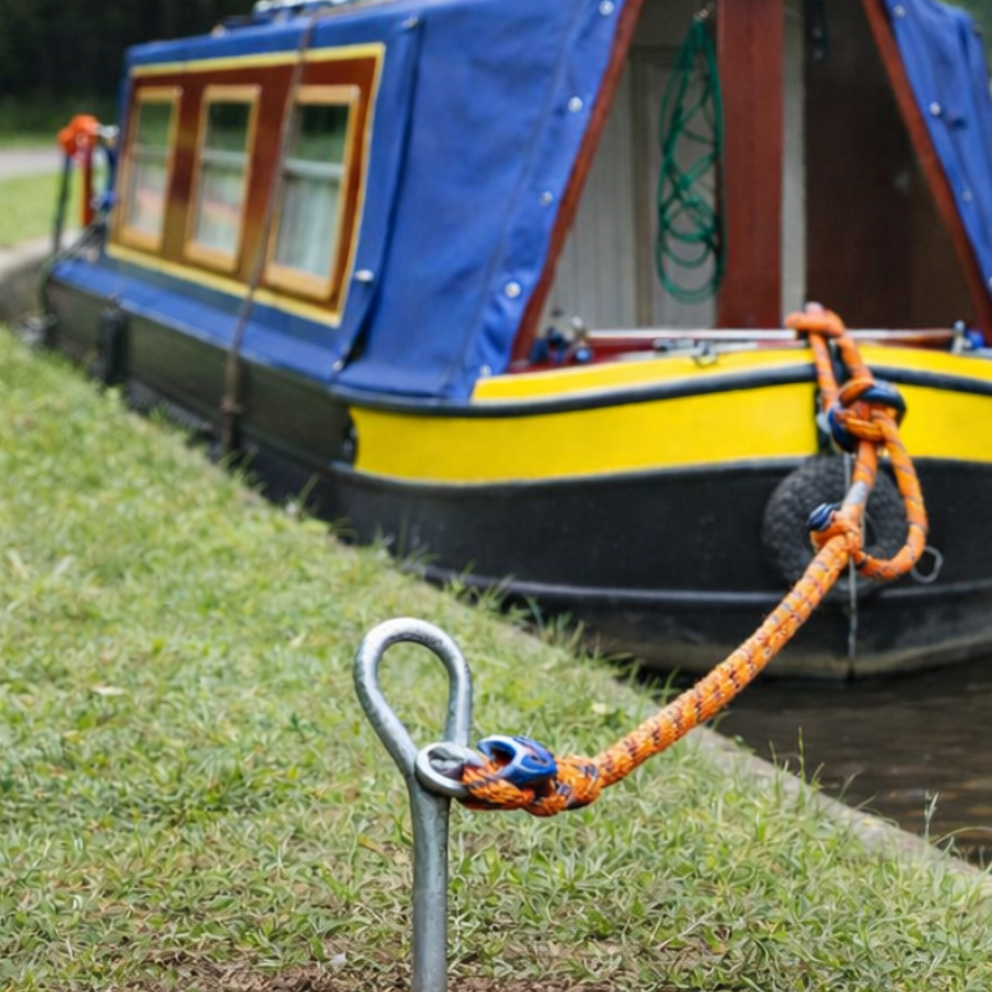

Tethering and security points for tools, equipment, or safety lines
Foundations for bridges, modular buildings, extensions, and conservatories
Underpinning and foundation repairs
Wind turbine and solar installations in remote or off-grid locations
Temporary and relocatable structures such as site cabins or staging
Domestic garden uses — including sheds, decking, greenhouses, and retaining walls
For bespoke or high-load applications, our engineers can design custom helical anchors tailored to the exact ground conditions and load requirements of your site.
Design Considerations
Each Helical Anchor is engineered from high-grade steel with a helical plate welded to the shaft to maximise load transfer into the soil. The number, size, and pitch of the helices are optimised based on soil type and load demand.
This modular and corrosion-resistant design simplifies transport, handling, and installation while providing exceptional durability.
Anchor Systems’ proprietary helical design — covered by UK registered design rights — ensures high performance and ease of installation, even in confined or difficult terrain.
Installation & Usability

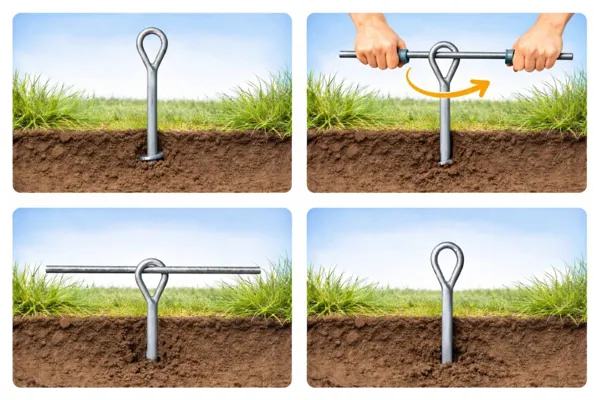

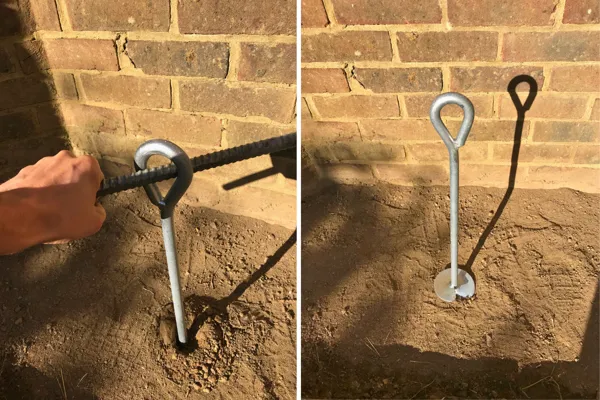

Helical Anchors are designed for simple and quick installation — either manually using a handheld bar or with a small powered auger. No excavation, concrete, or heavy machinery is required.
They are particularly effective in restricted access sites and can achieve holding capacities up to 50kN when matched to the correct soil conditions. Once installed, they can be fully loaded immediately and later unscrewed and reused, making them an excellent option for temporary works or relocatable structures.
Get to know more about the product
For full technical specifications, loading capacities, installation guidance, and application examples, download our Helical Anchors Brochure. It includes model charts, design considerations, and detailed benefits to help you choose the right anchor for your project.
Download the Helical Anchors Brochure
Not Sure Which Anchor Fits Your Project?
Our team is here to help. Whether you need advice on load requirements, soil conditions, or installation methods, we’ll guide you to the right solution.
Get in touch today to discuss your project with our technical experts.
