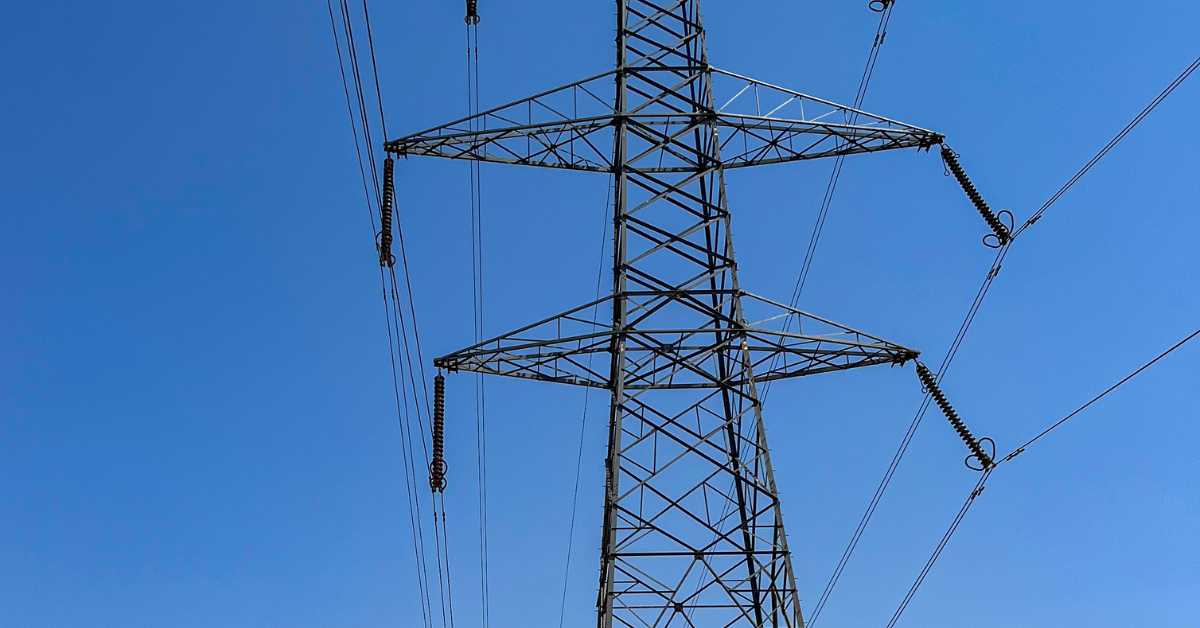

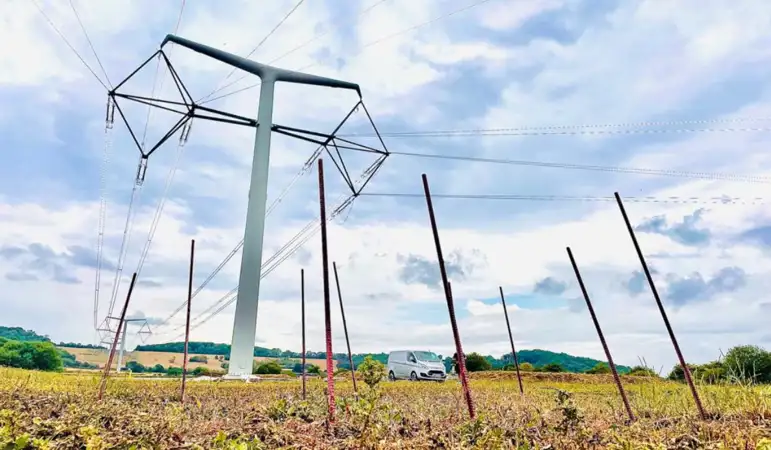

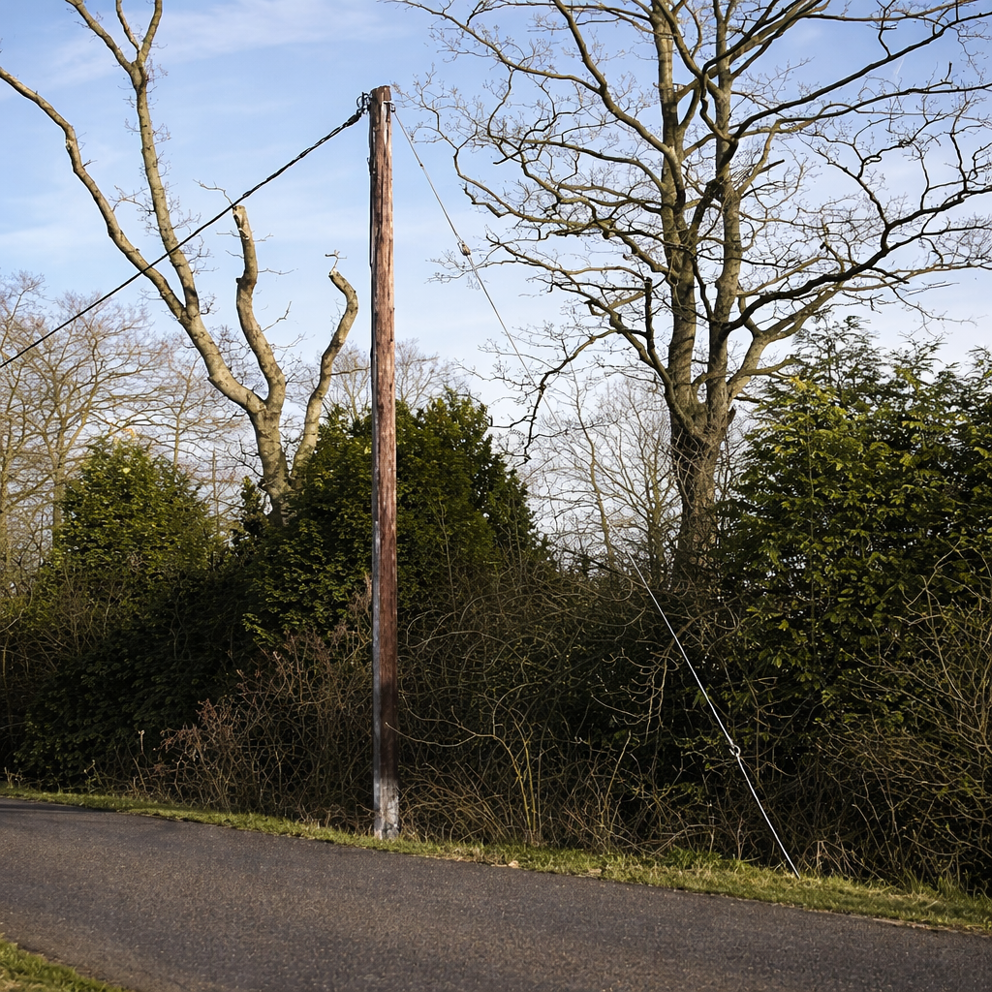

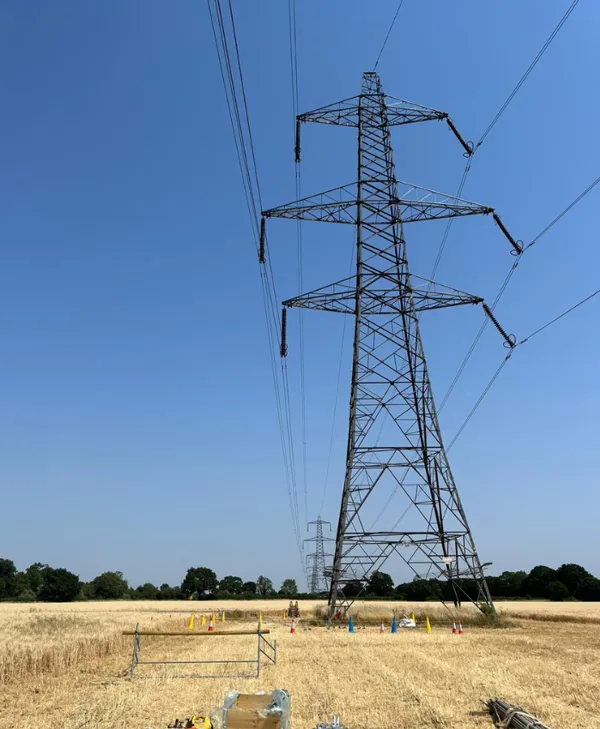

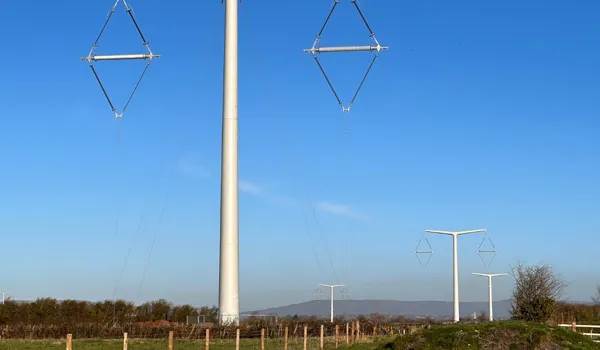

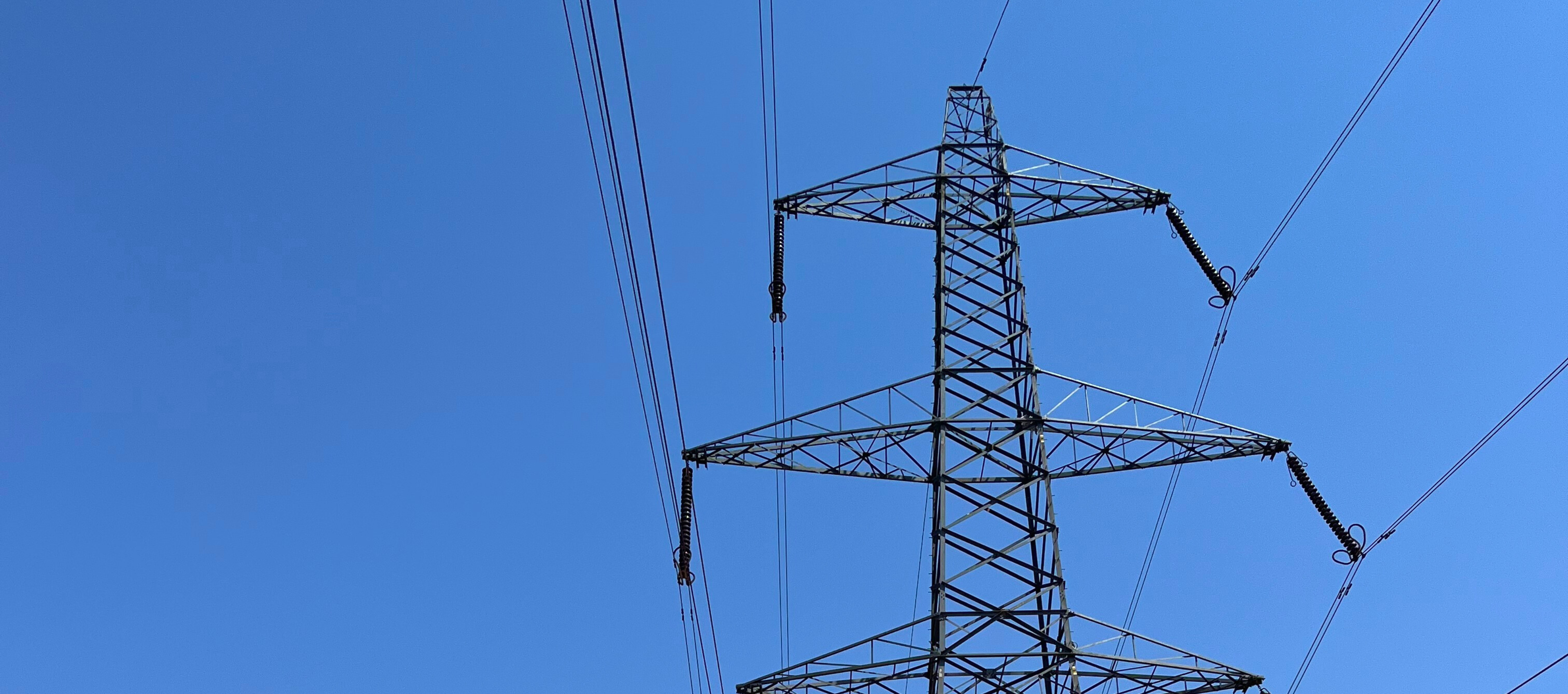

Overhead line structures, including conductor masts, T-Pylons, and lattice towers, rely on dependable ground anchoring systems to maintain stability under dynamic loads such as wind, vibration, and conductor tension. In these installations, lateral restraint is critical to prevent structural movement, maintain alignment, and ensure safe, continuous service across utility networks.

The Vulcan Earth Anchor provides a proven solution for securely anchoring overhead line structures. As a mechanical ground anchor, it transfers load efficiently into the soil, removing the need for concrete foundations or heavy ballast. The system offers immediate load capacity, can be installed in virtually any ground condition, and is ideally suited for both temporary and permanent utility applications.

Used widely by energy and transmission contractors, Vulcan Earth Anchors support structures carrying electrical, telecommunication, and data transmission lines, offering an efficient, low-impact alternative to traditional anchoring methods.

Traditional anchoring for overhead line structures often relies on concrete blocks or deep foundation pits. These can be logistically complex, time-consuming to install, and environmentally disruptive—particularly in remote or sensitive environments. The Vulcan Earth Anchor system offers a modern alternative, combining strength, efficiency, and sustainability.

Key advantages include:

• Immediate and Verified Load Capacity: Once installed and load-locked, Vulcan Earth Anchors provide instant tension resistance, verified through on-site proof testing to meet design specifications.

• Reduced Installation Time and Cost: The percussion-driven installation process eliminates excavation, curing, and large-scale groundworks, significantly reducing project timelines and labour requirements.

• Low Environmental Impact: No concrete or wet trades are required, minimising ground disturbance, material waste, and CO₂ emissions.

• Compact and Portable Equipment: The lightweight installation system enables access to restricted or off-grid locations without the need for heavy lifting machinery—ideal for utility corridors and rural transmission routes.

• Adaptable to Varying Ground Conditions: Anchor length, angle, and configuration can be adjusted to achieve the required load capacity across a wide range of soil types, including cohesive clays, granular soils, and mixed strata.

• Proven Long-Term Performance: The Vulcan system delivers durable holding capacity and corrosion resistance, ensuring continued performance in exposed or high-load environments throughout the asset’s design life.
