Pipeline Anchoring
Pipeline anchoring is an essential part of ensuring long-term pipeline stability and safety, particularly where ground movement, buoyancy, or environmental conditions can compromise performance. Whether for water, gas, or utility pipelines, maintaining correct alignment and resistance to uplift or lateral movement is critical to the integrity of the network.
Traditional concrete or deadweight solutions are often heavy, time-consuming to install, and environmentally intrusive. By contrast, mechanical ground anchors such as the Vulcan Earth Anchor offer a fast, reliable, and sustainable alternative that can be installed in a wide range of soil types with minimal disruption.
This application is especially relevant across the utilities and infrastructure sectors, including water management, oil and gas distribution, and renewable energy systems, where safety, efficiency, and longevity are paramount.

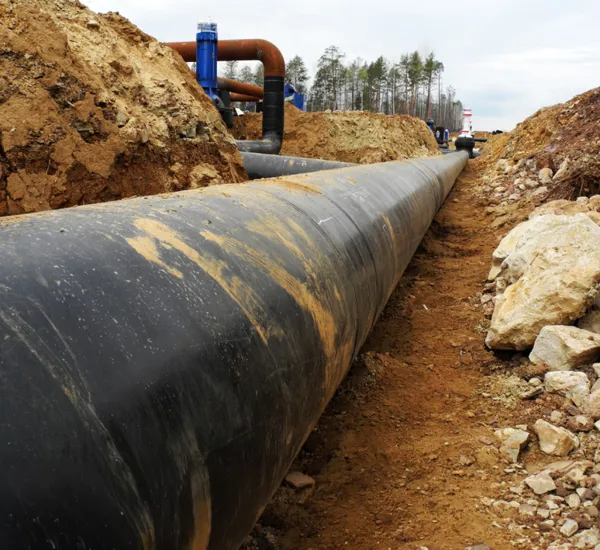

Why Use Vulcan Earth Anchors?
Traditional pipeline stabilisation often relies on large, cast-in-place concrete blocks or heavy ballast systems that are expensive, slow to install, and difficult to remove during maintenance or decommissioning. These methods can also pose challenges in remote or environmentally sensitive areas, where excavation and material transport are limited.
The Vulcan Earth Anchor system eliminates many of these issues through its lightweight, mechanical installation process and immediate load-locking capability. Key advantages include:
Rapid installation with handheld or hydraulic tools – no curing time or excavation required.
Reduced environmental impact, as no concrete or spoil removal is necessary.
Long-term holding capacity with proven resistance to uplift, lateral movement, and buoyant forces.
Flexibility to suit a wide range of soil conditions and project scales.
Cost efficiency, achieved through reduced material, labour, and transport needs.
Ease of inspection and maintenance, as anchors can be tested immediately after installation.
How Our Products Are Used for This Application
Vulcan Earth Anchors are installed beneath or adjacent to the pipeline using portable or hydraulic drive equipment. Once driven to the required depth, the anchor is load-locked by applying tension to the tendon, creating a secure, immediate hold against uplift or buoyancy.
The system can be used as a buoyancy control solution, preventing pipelines from floating in high groundwater or submerged environments, or as a stabilisation system for securing pipelines on slopes, river crossings, or soft ground.
Design considerations include:
Ground conditions: Different anchor types and installation depths are selected to match soil composition and expected loads.
Load requirements: Anchor capacity is determined based on the buoyant or lateral forces acting on the pipeline.
Corrosion protection: Anchor tendons and components can be supplied galvanised or stainless steel for added durability in aggressive environments.

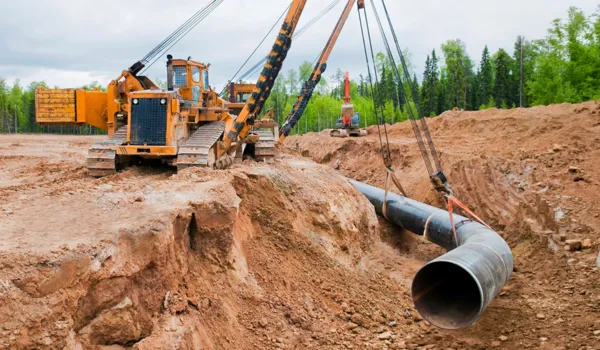

Which Products Are Used for This Application
Anchor Systems International supplies a range of Vulcan Earth Anchors that can be tailored to suit different pipeline sizes, ground conditions, and load requirements.
Smaller anchors are typically used for lightweight or shallow pipelines, offering a quick and efficient solution where moderate holding forces are required.
Larger anchors, on the other hand, are used for heavy-duty or deep-buried pipelines, providing the higher load capacities needed to resist buoyancy, lateral movement, or uplift in challenging environments.
Each anchor can be paired with suitable wire tendon assemblies and load transfer plates to ensure a secure connection to the pipeline. Systems can also be designed to accommodate varying soil conditions, including sand, clay, and mixed ground, with options for corrosion protection where required.

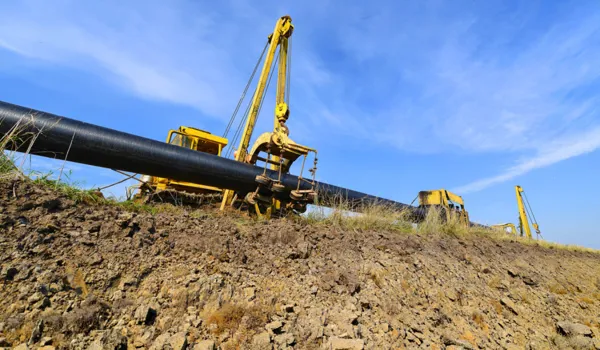

Common Applications We Support
Anchor Systems International’s solutions can be applied to a wide range of pipeline projects, including:
Water and wastewater pipelines
Gas and fuel transmission lines
Submarine or river crossing pipelines
District heating systems
Renewable energy utility pipelines (e.g., biogas or hydrogen)
Slope or embankment-supported pipelines
Our team can assist with the correct anchor specification and installation approach for each environment, from sandy coastal areas to dense clay or rock formations.
FAQs
01
Why do pipelines need anchoring?
Pipelines often require anchoring to prevent uplift, movement, or flotation caused by water pressure, soil displacement, or temperature changes. Anchoring ensures stability, safety, and long-term integrity of the pipeline system.
02
Can Vulcan Earth Anchors replace traditional concrete ballast systems?
Yes. Vulcan Earth Anchors offer an immediate load capacity and long-term reliability without the cost, weight, and environmental disruption of concrete ballast systems.
03
How are anchors tested after installation?
Anchors can be proof-tested immediately upon installation using a load-measuring device, confirming that each anchor meets the design load before the system is commissioned.
Get to know more about the product
The Vulcan Earth Anchor range was designed and developed by Anchor Systems (International) Ltd to provide a simple, reliable, and cost-effective ground anchoring solution for a wide variety of applications.
Our brochure includes detailed product information, performance data, installation guidance, and examples of real-world uses across multiple sectors.
If you require technical specifications or design advice for your specific project, please get in touch with our team.
